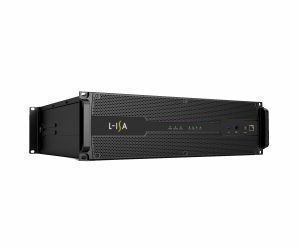

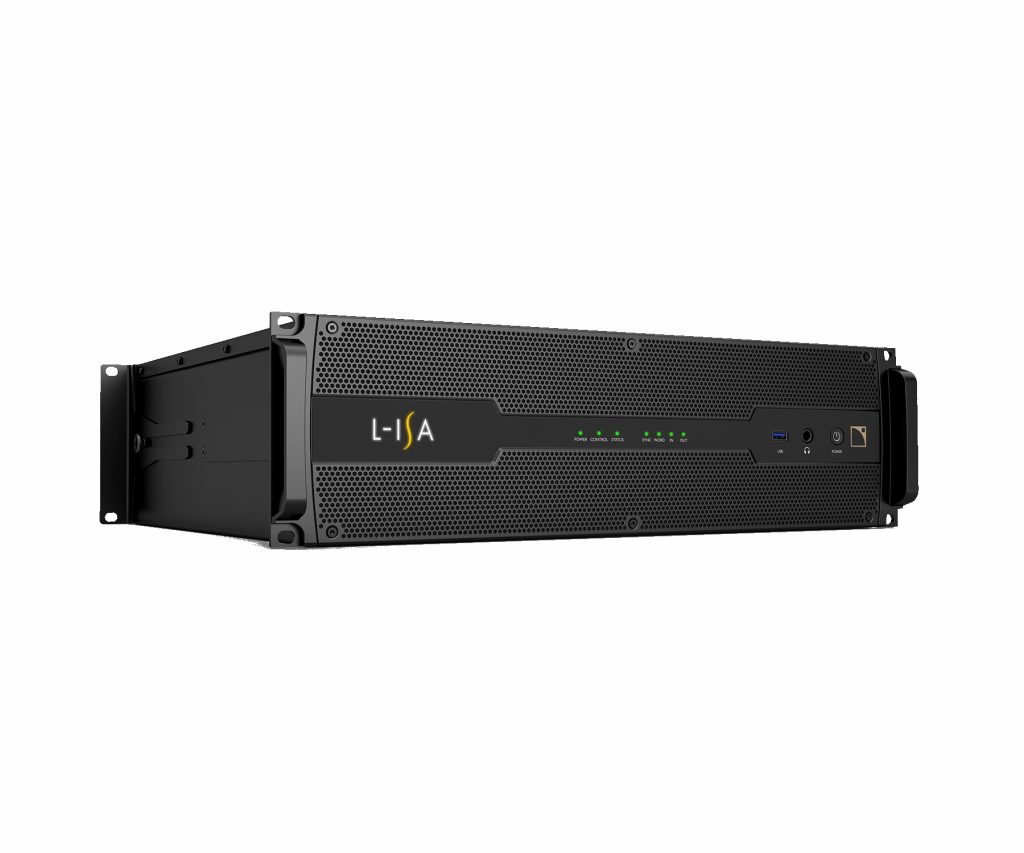

L-ISA Processor II is a hardware solution dedicated to real-time spatial audio processing. It provides state-of-the-art object-based mixing to any immersive audio production from intimate installations to the largest tours. The processor has been entirely redesigned for added robustness and greater resources, now offering 128 inputs and up to 128 outputs using Milan-AVB and MADI protocols.
Architecture:
128 input, 64 output at 96 kHz
Inputs:
64 AVB channels
96 MADI channels (96 kHz)
2 AES/EBU channels
Outputs:
64 AVB channels
32 MADI channels (96 kHz)
2 AES/EBU channels
Stereo headphones
Height:
3U
Delivery Options Available
Serviced & Quality Approved
Flexible Rental Periods
L-ISA Processor II can process up to 96 objects with spatial processing parameters (pan, width, distance, elevation) and the patent-pending room engine. Improving upon its predecessor, these objects can be rendered to up to 128 outputs at 96 kHz. To adapt to any project or production size and budget, L-ISA Processor II introduces a scalable licensing model that offers license packs with 16, 32, 64 and 128 outputs, which can be upgraded as needed.
The re-engineered chassis has been ruggedized with robust mechanics and locking connectors, and includes two redundant universal power supplies. When required, a second processor can be used in mirror mode for further redundancy. As a Milan-certified device, L-ISA Processor II also ensures reliability for audio distribution with seamless Milan network redundancy for all AVB streams.
L-ISA Processor II is remotely controlled and monitored using the L-ISA Controller software.
