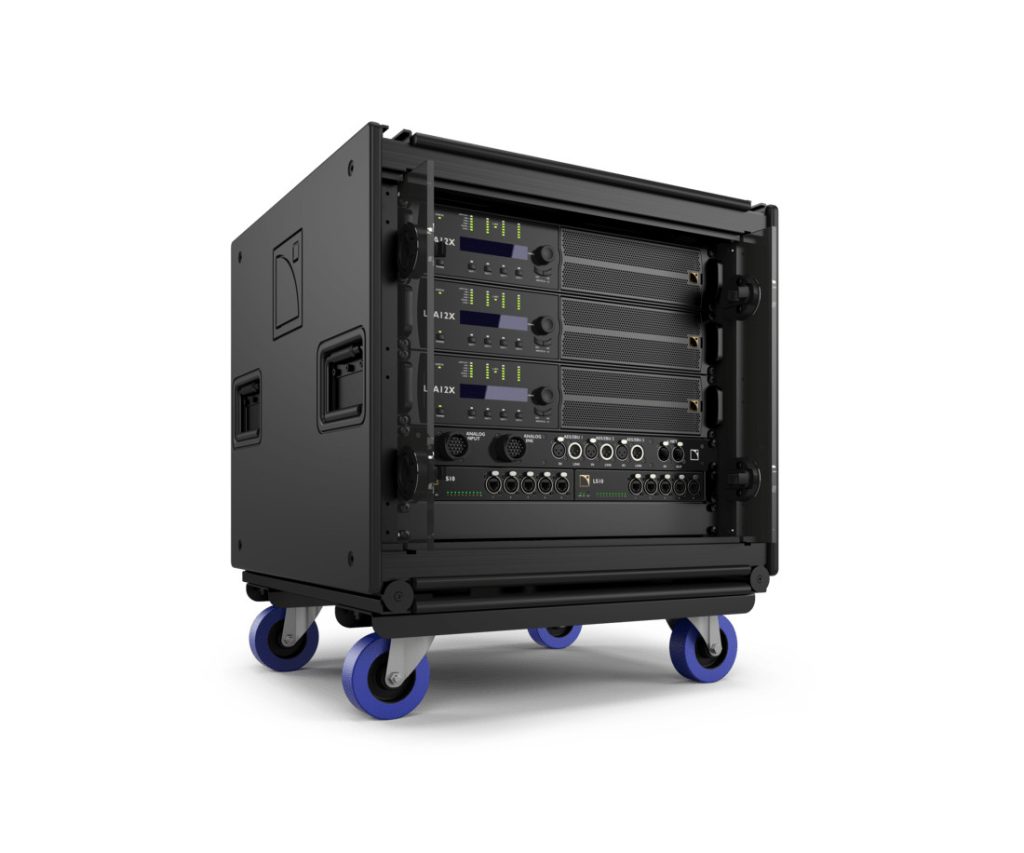

LA-RAK II AVB is a flyable touring rack offering twelve channels of high-power amplification in a 9U frame. It is equipped with three LA12X amplified controllers, two LS10 AVB switches, two panels for mains power and signal distribution and a blank panel. All devices are internally prewired for audio, control and power to offer a plug-and-play solution with seamless networked audio redundancy based on the Milan protocol
Architecture:
12 channels of amplification
Output Power:
Up to 40,000 W at 2.7 ohms
Inputs:
Milan-AVB, AES/EBU, Analogue
Delivery Options Available
Serviced & Quality Approved
Flexible Rental Periods
The rugged LA-RAK II AVB features a shock-absorbing inner frame, retractable front and rear doors, a detachable dolly and four handles to facilitate transport and manipulation. An optional flying frame supports up to four LA-RAK II AVB.
LA-RAK II AVB comes with three-phase 32 A IEC input and link connectors, allowing to link two LA-RAK II AVB. It also comes with a 30 A NEMA connector for 110 V operation. Additional power sockets are available for auxiliary equipment.
Usable worldwide, LA-RAK II AVB facilitates tour logistics and cross-rental between L-Acoustics rental network agents. LA-RAK II AVB is mechanically and electrically compatible with the LA-RAK II and LA-RAK legacy standard.
