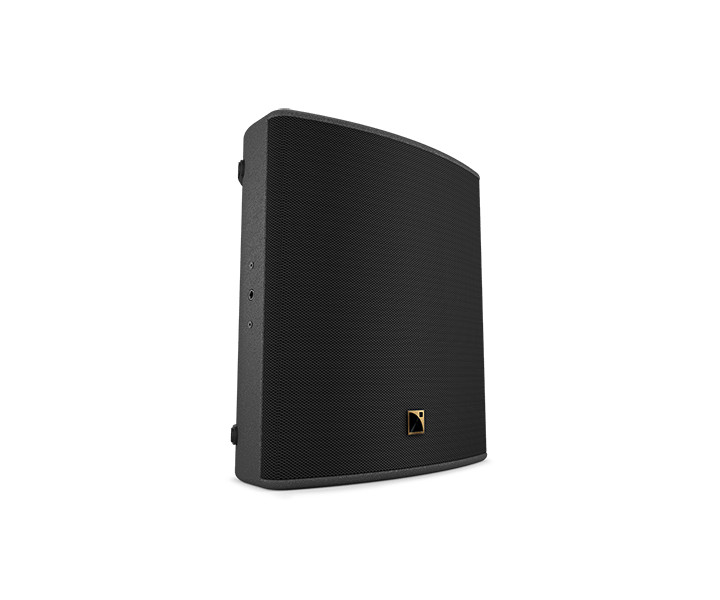

L-Acoustics X12 Loudspeaker

Overview

The X12 is a multipurpose coaxial system perfectly suited to all short throw sound reinforcement applications. The enclosure features a 3’’ diaphragm compression driver coaxially loaded by a 12’’ low frequency transducer in a bass-reflex cabinet. The L-Vents laminar vented ports reduce turbulence and port noise at high levels to increase LF efficiency.

For Hire L-Acoustics

Specs

Max SPL:

136 dB

Bandwidth:

59 Hz – 20 kHz

Transducers:

LF: 1 x 12″, HF: 1 x 3″

Weight:

20 kg

Directivity:

H: 90°, V: 60°

Additional Information

Delivery Options Available

Serviced & Quality Approved

Flexible Rental Periods

The L-Acoustics X12 is a versatile and powerful coaxial loudspeaker designed for a wide range of professional sound reinforcement applications. Part of L-Acoustics’ X Series, the X12 delivers exceptional sound quality, compact design, and flexible deployment options, making it an ideal choice for live sound, fixed installations, and touring.

Key Features:

Coaxial Driver Design: The X12 features a coaxial transducer arrangement with a 12-inch woofer and a 3-inch diaphragm compression driver. This design ensures a highly consistent directivity and a smooth, natural sound across the entire frequency range, with minimal distortion.
Wide Coverage: The X12 offers a 90° conical directivity, providing wide and even coverage, making it suitable for both near-field and medium-throw applications. This wide dispersion pattern ensures that the sound remains consistent, even off-axis.
High Output and Power Handling: With a maximum SPL of 136 dB, the X12 delivers powerful sound output, capable of handling demanding environments. Its high power handling capacity ensures reliability and performance in both live and installed sound settings.
Flexible Mounting Options: The X12 is designed for versatile deployment, with multiple rigging and mounting options. It can be used as a main PA speaker, stage monitor, or as part of a distributed sound system. Integrated rigging points and optional accessories allow for easy mounting on poles, trusses, or walls.
Durable Construction: The X12 is built with rugged plywood construction and a weather-resistant, polyurea coating, making it durable enough for both indoor and outdoor use. Its compact and lightweight design (weighing only 20 kg) makes it easy to transport and set up.
Advanced Protection: The speaker is equipped with L-Vents that help control airflow within the cabinet, reducing turbulence noise and providing efficient heat dissipation for the drivers, ensuring consistent performance and long-term reliability.
Optimized for LA Series Amplifiers: The X12 is designed to be paired with L-Acoustics LA Series amplified controllers, which provide optimized preset settings for different applications, ensuring the best performance and protection.

Applications:

The L-Acoustics X12 is an incredibly versatile loudspeaker suited for a variety of professional audio applications. It excels as a high-performance stage monitor, a fill speaker in larger PA systems, or as a main PA speaker in smaller venues and events. Its flexibility and high-performance capabilities make it a popular choice for sound engineers and event organizers who need reliable, top-quality sound in any environment.

Whether used for live concerts, corporate events, or fixed installations, the L-Acoustics X12 delivers clear, powerful, and precise sound, making it an essential tool for any professional sound setup.
