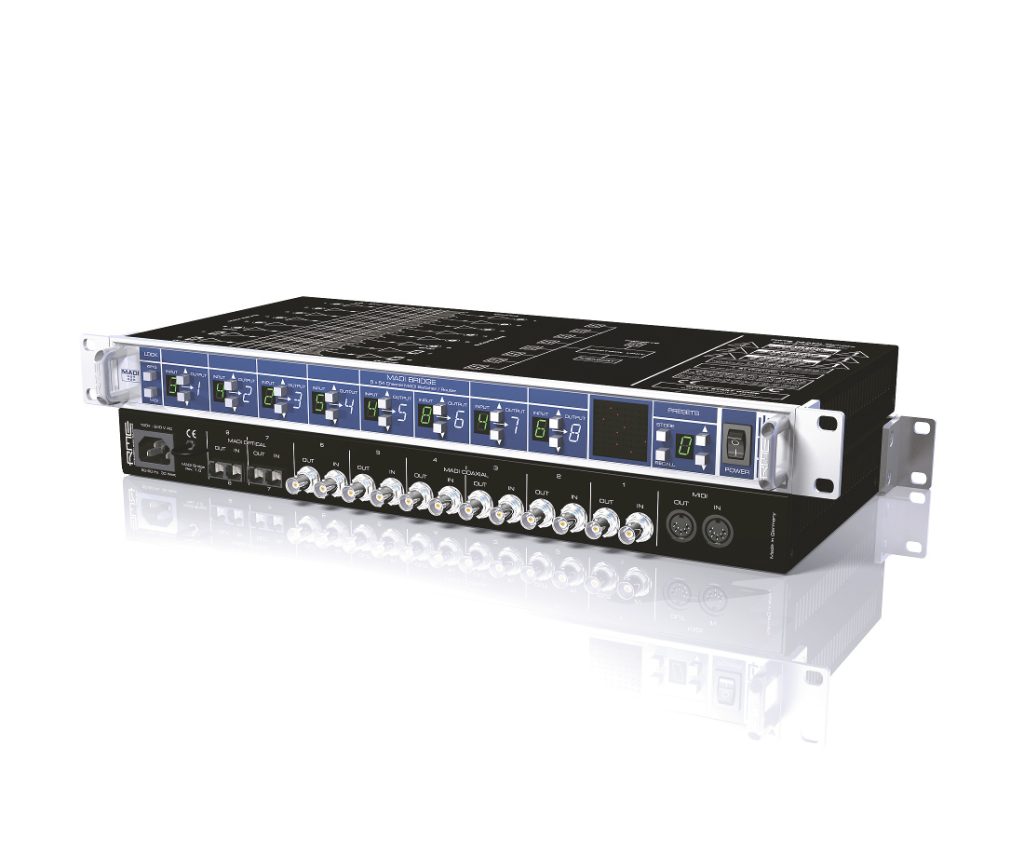

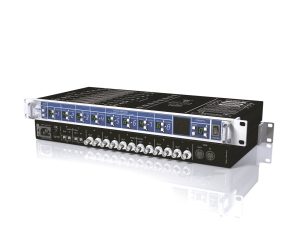

Developed as the optimal missing link between MADI devices of any manufacturer, RME’s MADI Bridge is patchbay, distributor, signal buffer and input selector, all at the same time.
Developed as the optimal missing link between MADI devices of any manufacturer, RME’s MADI Bridge is patchbay, distributor, signal buffer and input selector, all at the same time.
Inputs:
6 x MADI (coaxial), 2 x MADI (optical), 1 x MIDI for Remote
Outputs:
6 x MADI (coaxial), 2 x MADI (optical), 1 x MIDI for Remote
Delivery Options Available
Serviced & Quality Approved
Flexible Rental Periods
Up to 16 devices can be freely connected with each other by 6 coaxial (BNC) and 2 optical in- and output pairs. Thanks to an intuitive and easy to navigate user interface, the device is easy to understand and to operate. The MADI Bridge adds to RMEs MADI series as a comfortable, even MIDI controlled device management solution.
All input signals are routed unaltered to the desired outputs. Like this, the MADI Bridge supports any format, no matter if it is 56 or 64 channels or includes special invisible control commands, any sample rates and even out-of-spec data rates or violations of the MADI protocol. Thanks to a special equalising and highly sensitive input stages, coaxial cable lengths of 100 m can be used – even between several devices. Some application examples:
