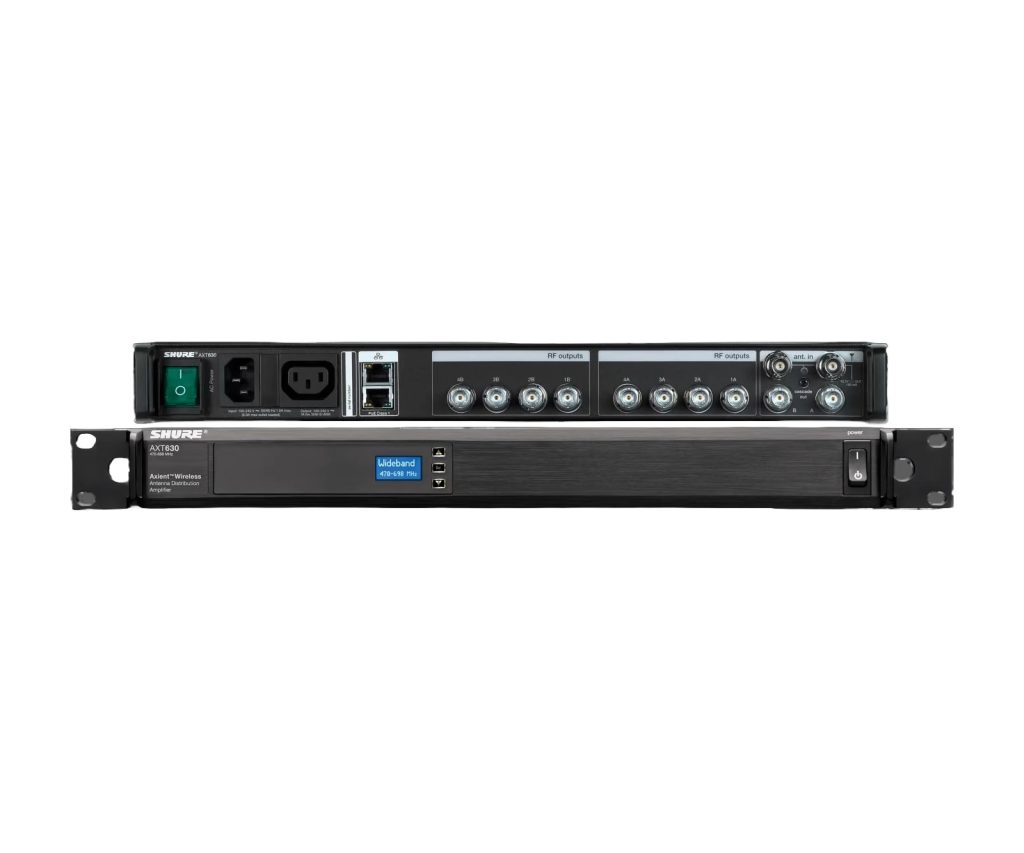

Axient antenna distribution systems delivers ultra-linear amplification and precision filtering for optimal performance. Features include wideband filtering and up to 15 dB of selectable RF attenuation for signal-to-noise optimization.
Axient antenna distribution systems delivers ultra-linear amplification and precision filtering for optimal performance. Features include wideband filtering and up to 15 dB of selectable RF attenuation for signal-to-noise optimization.
Frequency Range:
470-698 MHz
Band Filters:
Wideband: 470–698 MHz
Band G1: 470–530 MHz
Band H4: 518–578 MHz
Band J5: 578–638 MHz
Band L3: 638–698 MHz
Delivery Options Available
Serviced & Quality Approved
Flexible Rental Periods

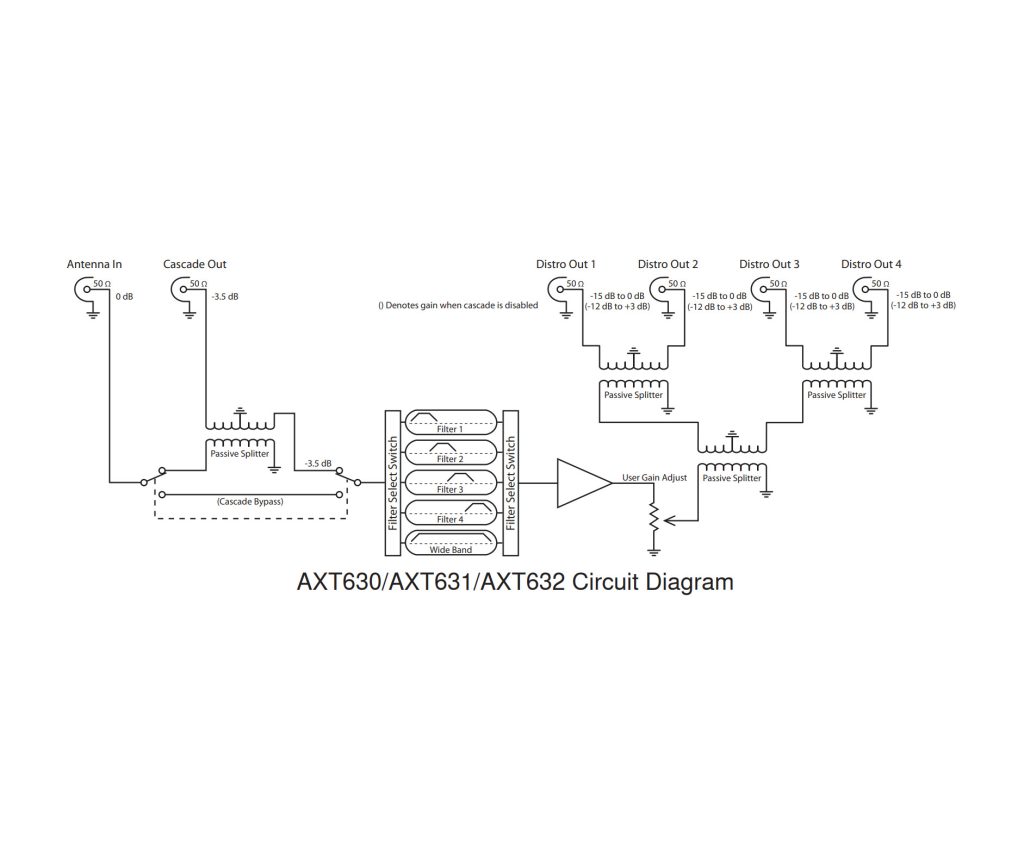

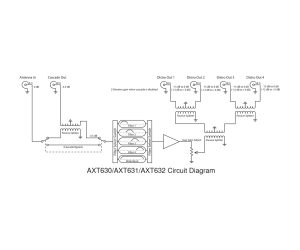

Antenna distribution systems send the RF signal from a single pair of antennas to multiple receivers. Ultra-linear amplification and adjustable attenuation optimize performance in difficult RF environments. Selectable input filters match the available frequency bands of transmitters, providing extra protection from strong out-of-band signals. BNC antenna output pairs distribute band-filtered signal to up to 4 receivers. A pair of wideband cascade ports supplies a wideband RF signal to Spectrum Managers or additional antenna distribution amplifiers. Networking enables Wireless Workbench® 6 system control of filtering ranges and attenuation. To maximize use of available RF spectrum, two models of the Antenna Distribution System are available. The AXT630 covers a frequency range of 470-698 MHz and the AXT631 covers a frequency range of 606-814 MHz.
Features
• Selectable input filtering provides system-wide protection against strong out-of-band signals
• Wideband filtering option covers multiple bands
• Up to 15 dB of selectable RF attenuation for signal-to-noise optimization
• Front panel interface and Wireless Workbench 6 software control provide easy setup and control of filtering, antenna power, and attenuation
• BNC outputs: 4 antenna output pairs
• Wideband RF cascade port with selectable 3 dB make-up gain for connecting wideband devices
• Ethernet Networking: 2 PoE enabled Ethernet ports
• IEC power ports enable daisy-chaining of AC power
