The KK50 is a compact, line array element comprised of 8 x 2” neodymium transducers in a strong stainless steel chassis. Its wide dispersion pattern can be configured horizontally or vertically. A number of KK50 speakers can also be put together in multiple array configurations.
Each speaker can be set for 16 or 64 ohms eliminating the need for 70 volt transformers in distributed systems. The KK50 reproduces the full vocal frequency range with clear intelligibility. This can be augmented with the KKS50 or KL12 sub to extend the operating frequency range.
KA series amplifiers have presets specifically optimized for KK50 applications.
Features:
- Speaker power handling: 150 W (AES)
- Max power: 300 W
- Impedance: 16 Ω or 64 Ω (selectable)
- Frequency range: 150 Hz – 19 KHz
- SPL 1W/1mt: 92 dB
- Maximum SPL: 114 dB continuous (120 dB peak)
- Coverage: Horizontal 100°/ Vertical 10°
- Crossover type: External crossover required (150 Hz, 24 db/oct suggested minimum)
- Transducers: 8 x 2” neodymium 0.75” voice coil

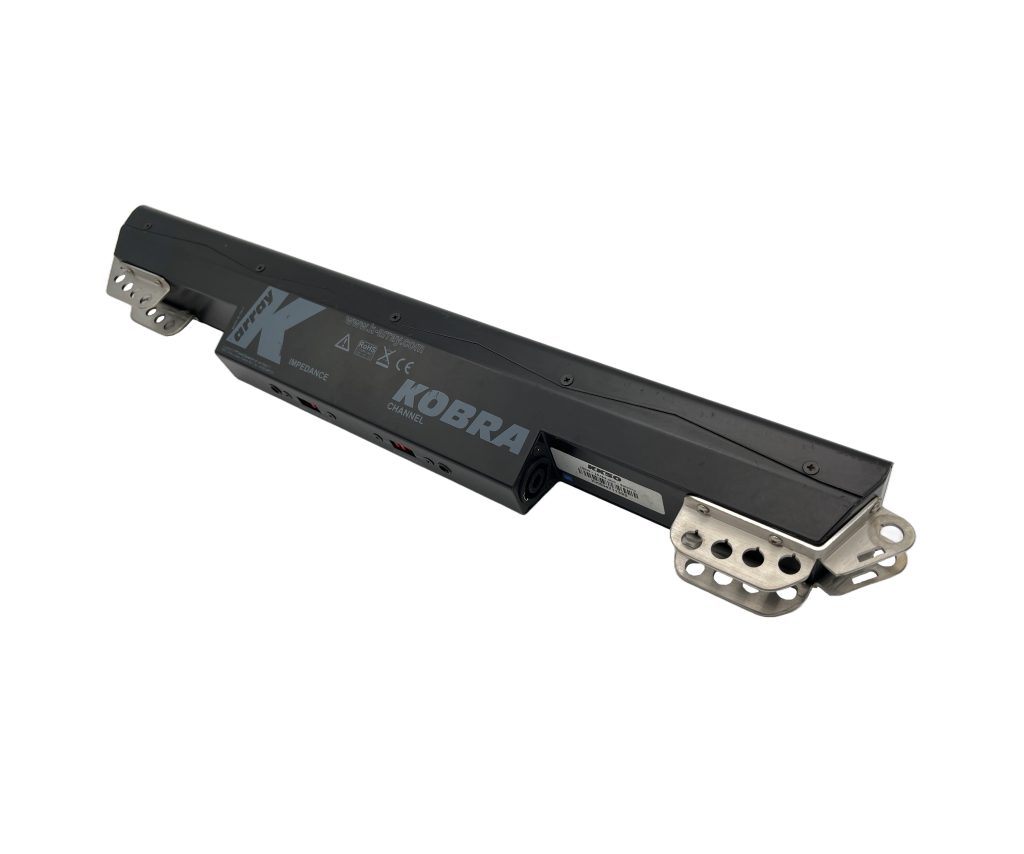

- Connectors: 2 x speakON NL4
- Dimensions: 5.7 x 51.3 x 7.5 cm (2.24” x 20.2” x 2.95”)
- Weight: 1.8 Kg (3.97 lbs)
Recommended Amplifiers:
- 64 Ω: KA7, KA7-7, KA10, KA10-10, KA40 for up to 16 units each channel with dedicated preset
- 16 Ω: KA7, KA7-7, KA10, KA10-10 for up to 4 units each amplifier with dedicated preset
For more information, please contact phill.chapman@deltalive.com
