RTW TouchMonitor (this is the HW20911 variant, branded as TC Electronic) is the ultimate, stand-alone loudness meter solution, featuring a touch screen with highly flexible layout options, an extremely consistent loudness readout and compatibility with all major  broadcast standards, including ITU-R BS.1770, EBU R128 and ATSC A/85.

Features:

  • 8-channel analogue inputs (electronically balanced, D-Sub).
  • 8-channel digital inputs/ outputs (transformer balanced, 4x AES In/Out, D-Sub).

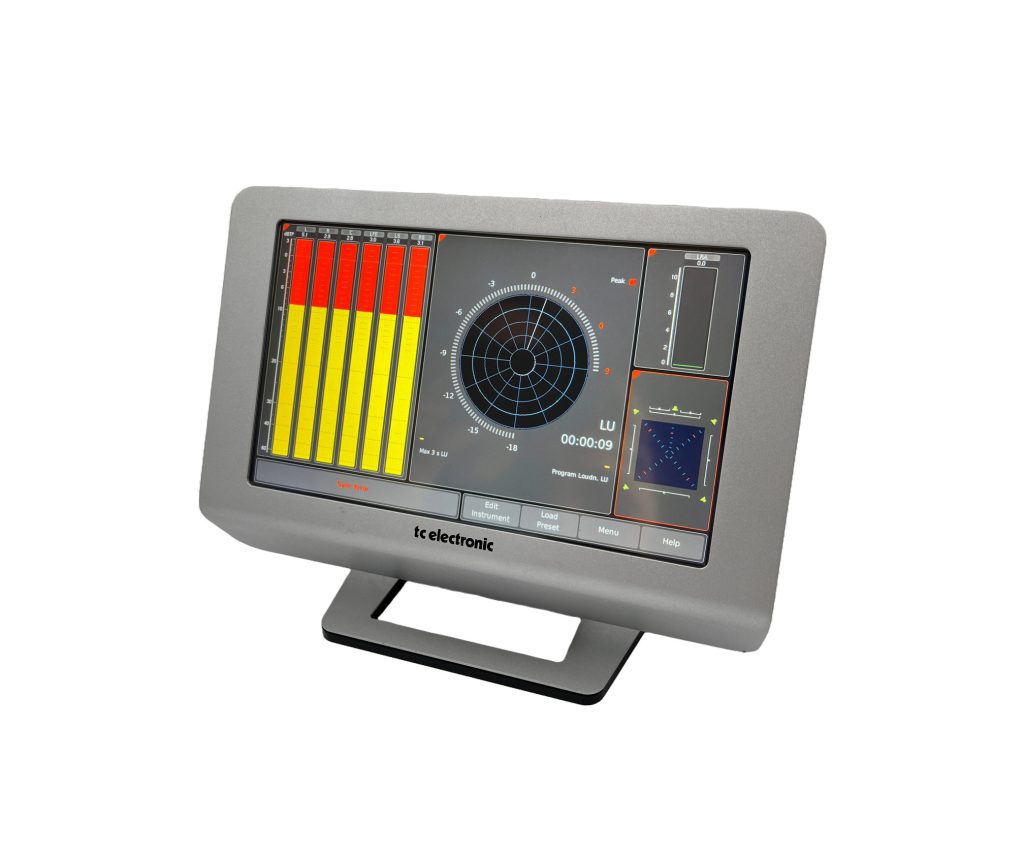

  • 9″ touch screen (16:9, 1024 x 600).

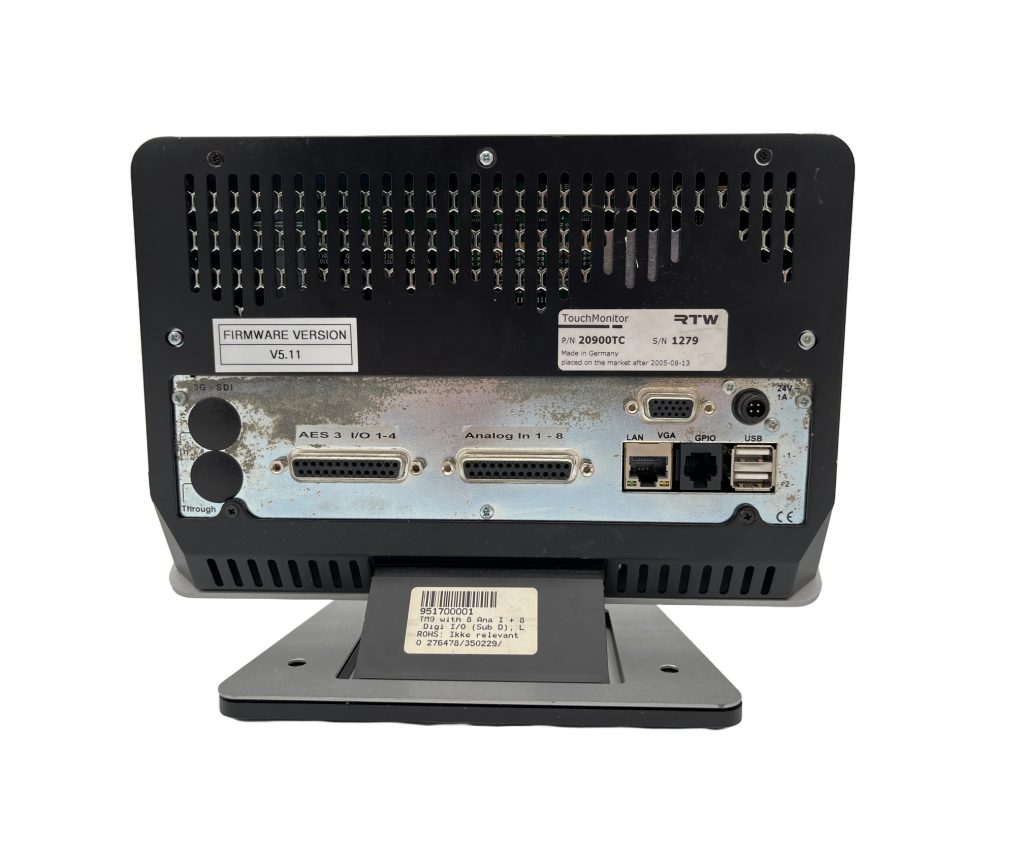

  • Connectors: Ethernet, VGA, 2 x USB 2.0, GPIO.
  • Movable table stand.
  • Fully scalable, modular software approach for flexible configuration and easy on-site upgrades.
  • Highly flexible screen layout options with scalable instruments.
  • Basic 4-channel PPM software: Peak, True Peak, Phase Meter, Global Keyboard.
  • Full feature list can be found here: https://www.rtw.com/instrument_specs/pdf/RTW_DS_20900.pdf

Installed software licences:

  • SW20001: Multichannel mode.
  • SW20002: Loudness and SPL display.
  • SW20004: Surround Sound analyser.
  • SW20005: Radar display.

For more information, please contact phill.chapman@deltalive.com
